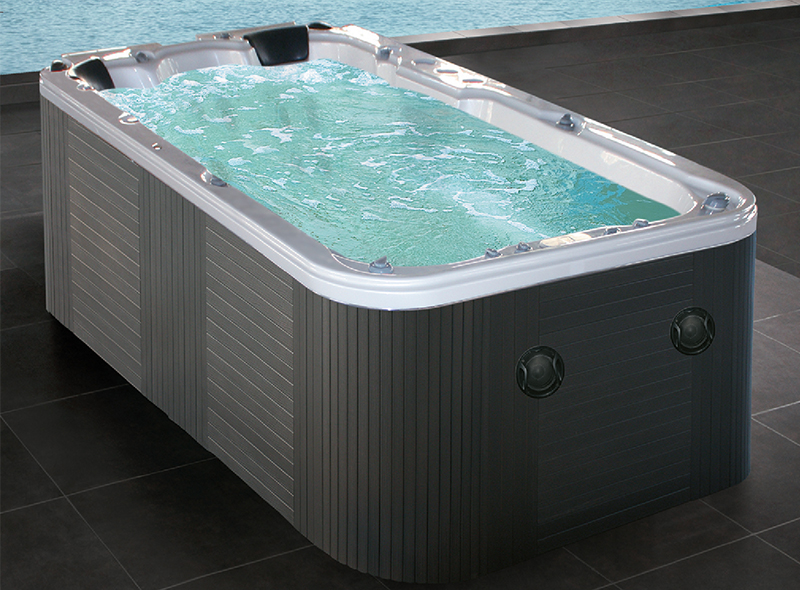

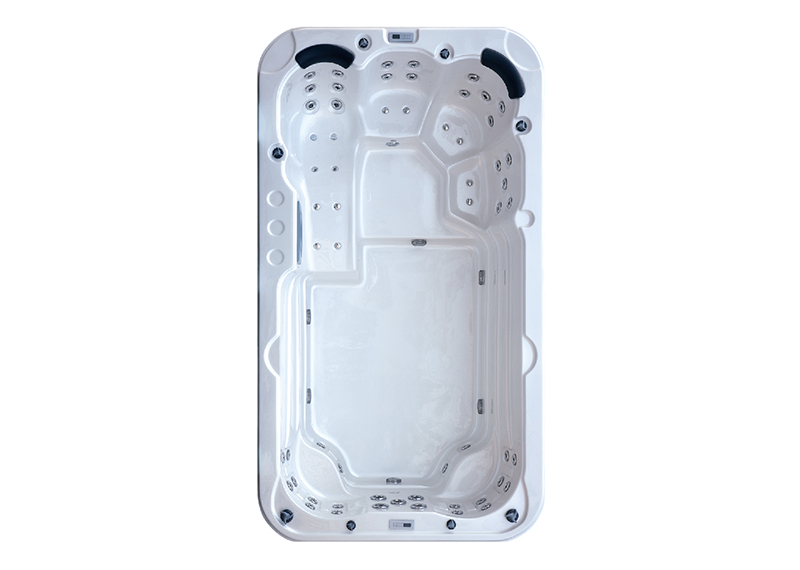

SPA & SWIMMING POOL - RAS - 607 SR
Share |
RAS - 607 SR SIZE : 3850 MM X 2200 MM X 1200 MM
SEATING
  • Seating Capacity - 1 person
  • Lounge - 5 person
WEIGHT
  • Weight-Dry/Filled - 800KGS/6850 KGS
  • Water Capacity - 1597US Gallon/6050 liters
PUMPS
  • Jet Pump 1 - 3.0 HP
  • Jet Pump 2 - 3.0 HP
  • Jet Pump 3 - 3.0 HP
  • Jet Pump 4 - 2.0 HP
  • Circulation Pump - 1.0 HP
  • Air Blower - 1.5 HP
ELECTRICS
  • Control system - smart-GaoErDa Control System
  • Max Power Consumption - 13225Watt20.1A in 380V50Hz
  • Heater - 3KW/220-240VAC
  • Underwater Lighting - 5" LED
JET CONFIGURATIONS
  • Jets total(pc) - 60
  • Swim Jets (pc) - 5
  • Massage Jets (pc) - 40
  • Air Jets (pc) - 15
FILTRATION
  • Filter - Front Access filters
  • Effective Filtration Area - 100 sq. ft.
  • Ozone Generator - 50mg/h
FEATURES
  • Water Diverter (pc) - 4
  • Air Regulator (pc) - 4
  • Suctions (pc) - 6
  • Gate Valves(pc) - 12
  • Drain Valve (pc) - 1
  • Headrest pillows(pc) - 2
  • Support Frame - #304 stainless steel
  • Overflow Outlet (pc) - 1
  • Inbuilt Radio & skirt speakers - Yes
  • Wooden Skirt - Yes
